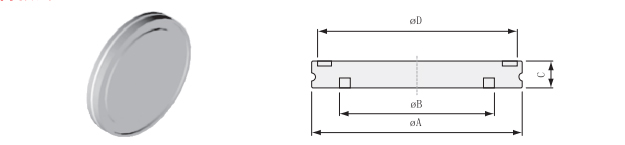

Name : ISO Blank Flange
| parts no. | Model | Material | A | B | C | D | price |
|---|---|---|---|---|---|---|---|
| ISO 2001 | ISO 63B | 304 S.S. | 95 | 70 | 12 | 90 | $51.90 |
| ISO 2002 | ISO 80B | 304 S.S. | 110 | 83 | 12 | 105 | $91.20 |
| ISO 2003 | ISO 100B | 304 S.S. | 130 | 102 | 12 | 125 | $77.50 |
| ISO 2004 | ISO 160B | 304 S.S. | 180 | 153 | 12 | 175 | $104.90 |
| ISO 2005 | ISO 200B | 304 S.S. | 240 | 213 | 12 | 235 | $170.20 |
| ISO 2006 | ISO 250B | 304 S.S. | 290 | 261 | 12 | 285 | $337.80 |
| ISO 2007 | ISO 320B | 304 S.S. | 370 | 318 | 17 | 365 | $570.50 |
| ISO 2008 | ISO 400B | 304 S.S. | 450 | 400 | 17 | 445 | $690.80 |
| ISO 2009 | ISO 500B | 304 S.S. | 550 | 501 | 17 | 545 | $1045.00 |
