Name : ISO Centering ring

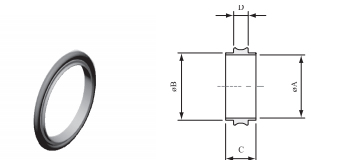

ISO centering ring
| parts no. | Model | Material | A | B | C | D | price |
|---|---|---|---|---|---|---|---|
| ZX8091 | ISO 63CRSA | 304 S.S. | 67 | 69.6 | 8 | 3.9 | |
| ZX8092 | ISO 80CRSA | 304 S.S. | 80 | 82.6 | 8 | 3.9 | |
| ZX8093 | ISO 100CRSA | 304 S.S. | 100 | 101.6 | 8 | 3.9 | |
| ZX8094 | ISO 160CRSA | 304 S.S. | 150 | 152.6 | 8 | 3.9 | |
| ZX8095 | ISO 200CRSA | 304 S.S. | 210 | 212.6 | 8 | 3.9 | |
| ZX8096 | ISO 250CRSA | 304 S.S. | 257.5 | 260.4 | 8 | 3.9 | |
| ZX8097 | ISO 320CRSA | 304 S.S. | 312 | 318.3 | 12 | 5.6 | |
| ZX8098 | ISO 400CRSA | 304 S.S. | 394 | 399.2 | 12 | 5.6 | |
| ZX8099 | ISO 500CRSA | 304 S.S. | 494 | 500.2 | 12 | 5.6 | |
| ZX8100 | ISO 63CRAA | Aluminum | 67 | 69.6 | 8 | 3.9 | |
| ZX8101 | ISO 80CRAA | Aluminum | 80 | 82.6 | 8 | 3.9 | |
| ZX8102 | ISO 100CRAA | Aluminum | 100 | 101.6 | 8 | 3.9 | |
| ZX8103 | ISO 160CRAA | Aluminum | 150 | 152.6 | 8 | 3.9 | |
| ZX8104 | ISO 200CRAA | Aluminum | 210 | 212.6 | 8 | 3.9 | |
| ZX8105 | ISO 250CRAA | Aluminum | 257.5 | 260.4 | 8 | 3.9 | |
| ZX8106 | ISO 320CRAA | Aluminum | 312 | 318.3 | 12 | 5.6 | |
| ZX8107 | ISO 400CRAA | Aluminum | 394 | 399.2 | 12 | 5.6 | |
| ZX8108 | ISO 500CRAA | Aluminum | 494 | 500.2 | 12 | 5.6 |
