Name : ISO centering ring with outer ring & O’ring NBR
ISO centering ring with outer ring & O’ring

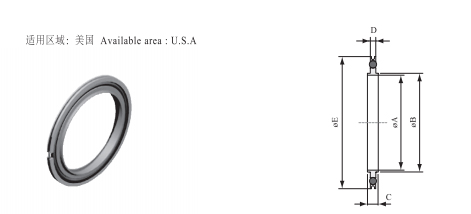

| parts no. | Model | C/R Material | A | B | C | D | E | O/R Material | O’ring Size | price |
|---|---|---|---|---|---|---|---|---|---|---|
| ZX8235 | ISO63OCRNSA | 304 S.S | 67 | 69.5 | 8 | 3.9 | 94 | Aluminum | AS-337 | |
| ZX8236 | ISO80OCRNSA | 304 S.S | 80 | 82.6 | 8 | 3.9 | 109 | Aluminum | AS-341 | |
| ZX8237 | ISO100OCRNSA | 304 S.S | 100 | 101.6 | 8 | 3.9 | 128 | Aluminum | AS-347 | |
| ZX8238 | ISO160OCRNSA | 304 S.S | 150 | 152.6 | 8 | 3.9 | 179 | Aluminum | AS-362 | |
| ZX8239 | ISO200OCRNSA | 304 S.S | 210 | 212.6 | 8 | 3.9 | 238 | Aluminum | AS-371 | |
| ZX8240 | ISO250OCRNSA | 304 S.S | 257.5 | 260.4 | 8 | 3.9 | 287 | Aluminum | AS-378 | |
| ZX8241 | ISO320OCRNSA | 304 S.S | 312 | 317.3 | 12 | 5.6 | 344 | Aluminum | AS-454 | |
| ZX8242 | ISO400OCRNSA | 304 S.S | 394 | 399.2 | 12 | 5.6 | 446 | Aluminum | AS-461 | |
| ZX8243 | ISO500OCRNSA | 304 S.S | 494 | 500.2 | 12 | 5.6 | 535 | Aluminum | AS-469 | |
| ZX8244 | ISO63OCRNAA | Aluminum | 67 | 69.5 | 8 | 3.9 | 94 | Aluminum | AS-337 | |
| ZX8245 | ISO80OCRNAA | Aluminum | 80 | 82.6 | 8 | 3.9 | 109 | Aluminum | AS-341 | |
| ZX8246 | ISO100OCRNAA | Aluminum | 100 | 101.6 | 8 | 3.9 | 128 | Aluminum | AS-347 | $33.00 |
| ZX8247 | ISO160OCRNAA | Aluminum | 150 | 152.6 | 8 | 3.9 | 179 | Aluminum | AS-362 | $44.00 |
| ZX8248 | ISO200OCRNAA | Aluminum | 210 | 212.6 | 8 | 3.9 | 238 | Aluminum | AS-371 | $60.00 |
| ZX8249 | ISO250OCRNAA | Aluminum | 257.5 | 260.4 | 8 | 3.9 | 287 | Aluminum | AS-378 | $70.00 |
| ZX8250 | ISO320OCRNAA | Aluminum | 312 | 317.3 | 12 | 5.6 | 344 | Aluminum | AS-454 | $118.00 |
| ZX8251 | ISO400OCRNAA | Aluminum | 394 | 399.2 | 12 | 5.6 | 446 | Aluminum | AS-461 | $290.00 |
| ZX8252 | ISO500OCRNAA | Aluminum | 494 | 500.2 | 12 | 5.6 | 535 | Aluminum | AS-469 | $440.00 |
O’ring color for NBR material is black, brown is available upon request
