ANGLE VACUUM VALVE
Pneumatically Actuated
With bellow , air to open, spring to close
Port Connection: CF Rotatable Flange

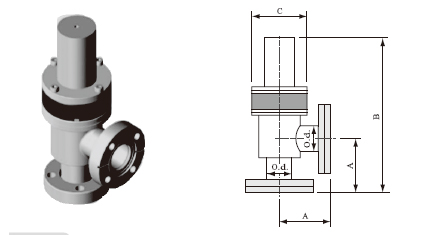

parts no.	Model	O.d	A	B	C	price
FM6057	VB-CR16-P	0.75	2.50	6.52	2.24	$335.00
FM6058	AVB-CR35-P	1.50	2.46	7.89	2.98	$380.00

Note:All dimensions shown on this page are in inch
Specification
Polished 304 stainless steel body
3/4-2 inch port Ods
Operating air pressure
4-6.5 kg/cm²
Bakeable to 150︒C
Viton seal bonnet
10⁻⁹ torr vacuum rating KF and CF flange
