ANGLE VACUUM VALVE
Pneumatically Actuated
With bellows, air to open, air to close
Port Connection: ISO Flange

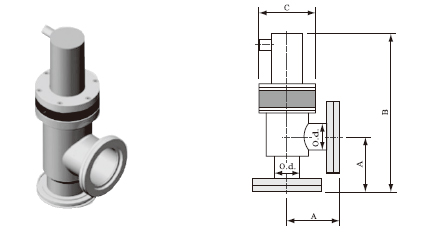

parts no.	Model	O.d	A	B	C	price
FM6069	AVB-ISO-63-P2	2.50	3.26	10.70	3.92	$740.00
FM6070	AVB-ISO-80-P2	3.00	3.51	10.95	4.49	$1000.00
FM6071	AVB-ISO-100-P2	4.00	4.47	13.86	5.97	$1500.00
FM6072	AVB-ISO-160-P2	6.00	6.26	17.82	9.45	$1450.00

Note All dimensions shown on this page are in inch
Specification
Polished 304 stainless steel body
3/4-8 inch port Ods
Operating air pressure
4-6.5 kg/cm²
Bakeable to 150︒C
Viton seal bonnet
10⁻⁹ torr vacuum rating KF and ISO flange
