ANGLE VACUUM VALVE
Pneumatically Actuated
Without bellows , air to open, spring to close
Port Connection: CF Rotatable Flange

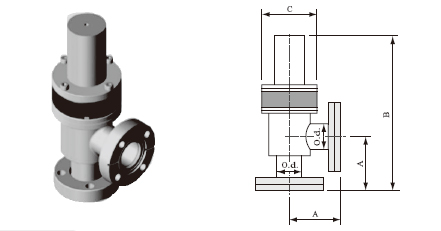

parts no.	Model	O.d	A	B	C	price
FM6081	AV-CR16-P	0.75	2.50	6.52	2.24
FM6082	AV-CR35-P	1.50	2.46	7.89	2.98

Note All dimensions shown on this page are in inch
Specification
Polished 304 stainless steel body
3/4-2 inch port Ods
Operating air pressure
4-6.5 kg/cm²
Bakeable to 150︒C
Viton seal bonnet
10⁻⁹ torr vacuum rating KF and CF flange
