ANGLE VACUUM VALVE
Pneumatically Actuated
With bellows, air to open, air to close
Port Connection: ISO Flange

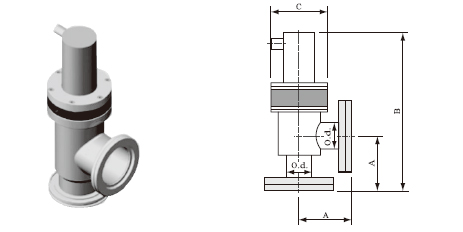

parts no.	Model	O.d	A	B	C	price
FM6093	AV-ISO-63-P2	2.50	3.26	10.70	3.92
FM6094	AV-ISO-80-P2	3.00	3.51	10.94	4.49
FM6095	AV-ISO-100-P2	4.00	4.47	14.37	5.97
FM6096	AV-ISO-160-P2	6.00	6.26	17.97	9.45

Note All dimensions shown on this page are in inch
Specification
Polished 304 stainless steel body
3/4-8 inch port Ods
Operating air pressure
4-6.5 kg/cm²
Bakeable to 150︒C
Viton seal bonnet
10⁻⁹ torr vacuum rating KF and ISO flange
