Y-INLINE VALVE
Manually Operated with bellows
Port connection:KF flange

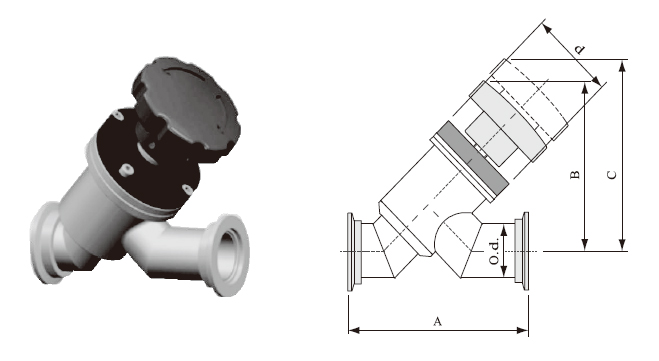

parts no.	Model	O.d	A	B	C	d	price
FM6139	YVB-KF16-M	0.75	4.00	3.89	4.43	2.24	$360.00
FM6140	YVB-KF25-M	1.00	4.20	3.89	4.43	2.24	$380.00
FM6141	YVB-KF40-M	1.50	5.12	4.89	5.80	2.98	$420.00
FM6142	YVB-KF50-M	2.00	7.00	5.59	6.83	3.48	$590.00

Specification

All dimensions shown on this page are in inch
Polished 304 stainless body
3/4-2 inch port Ods
Bakeable to 150︒C
Viton seal bonnet
10⁻⁹ torr vacuum rating KF and CF flange
