Name : 　Y-Inline Maually operated copper seal bonnet with bellows : Tube end

Y-INLINE VALVE
Manually Operated Copper seal Bonnet with bellows
Port Connection:Tube end

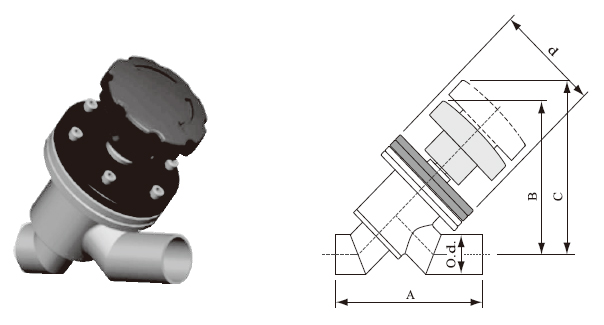

parts no.	Model	O.d	A	B	C	d	price
FM6145	YVB-CU-TE16-M	0.75	3.70	3.88	4.76	2.75
FM6146	YVB-CU-TE25-M	1.00	3.90	3.92	4.44	2.75
FM6147	YVB-CU-TE40-M	1.50	4.82	5.01	5.87	3.37
FM6148	YVB-CU-TE50-M	2.00	6.70	5.30	6.55	4.47

Note: All dimensions shown on this page are in inch
Polished 304 stainless steel body
3/4-2 inch port Ods
Bakeable to 150︒C
Metal seal bonnet
approximate 10⁻¹︒ torr vacuum rating CF flange
10⁻⁹ torr vacuum rating KF flange
