Y-INLINE VAVLE
Pneumatically Actuated with bellows Reed sensor
Port connection:CF flange

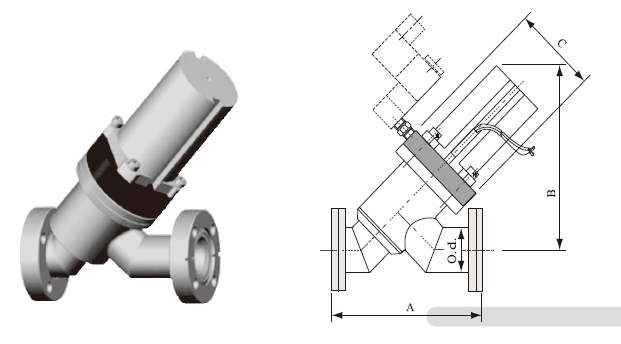

parts no.	Model	O.d	A	B	C	price
FM6175	YVBS-CR16-P	0.75	4.70	4.74	2.24
FM6176	YVBS-CR35-P	1.50	5.24	6.17	2.98

Note :All dimensions shown on this page are in inch
Polished 304 stainless body
3/4-2 inch port Ods
3/4-2 inch air to open,spring to close (normal close)
Operating air pressure
4-6.5 kg/cm²
Sensor specification
Voltage DC/AC 4-240V
Amps 5-40mA
Option
Air slenoid DC24V,AC24V,AC110V,AC220V
Viton seal bonnet
10⁻⁹ torr vacuum rating KF and CF flange
