VALVE VACUUM
Ball valve

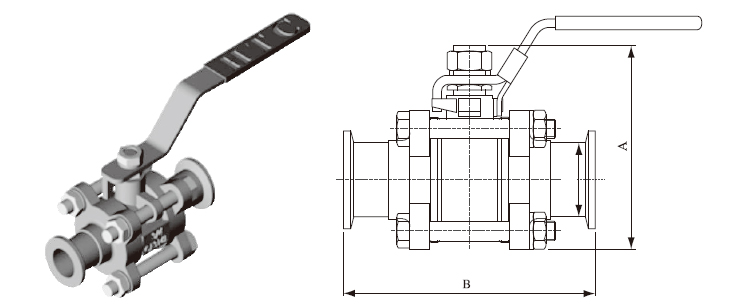

| parts no. | Model | CONNECTION | A | B | price | | FM6179 | KF18BV092(3/4") | KF16 | 64.4 | 92 | $320.00 | | FM6180 | KF25V107(1") | KF25 | 80 | 107 | $325.00 | | FM6181 | KF40BV130(1.5") | KF40 | 106.9 | 130 | $390.00
| | FM6182 | KF50BV151(2") | KF50 | 121.7 | 151 | $680.00
| | Description |
|
|
|
|
| | Flange |
| KF(NW) |
|
|
| | Operation |
| 1/4 turn manual open and close |
|
|
| | Fittings |
| N/A |
|
|
| | Sensors |
| N/V |
|
|
| | Materials |
| SS316,Viton, PTFE |
|
|
| | Leak rate Mbar-L/sec |
| 9.0*10⁻⁹ |
|
|
| | Max.pressure |
| 5.8PSI |
|
|
| | Pneumatic supply |
| N/A |
|
|
| | Operation time |
| N/A |
|
|
| | Operation temperature |
| 150︒C |
|
|
| | Weight | 3/4" | 0.6KG |
|
|
| | 1" | 1.2KG |
|
|
| | 1.5" | 2.8KG |
|
|
| | 2" | 4.4KG |
|
|
|
|
