HV series(with bellows) KF Flange

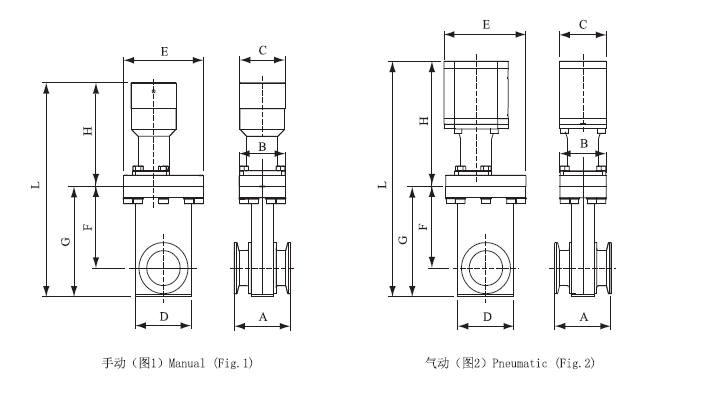

parts no.	Model	Port Dia	Bonnet seal	Actuator type	Flange O.D.	A	B	C	D	E	F	G	H	L	price
ZF7001	GVB-SS-KF40-M	37.5	Viton	Manual	55	50	52	51	63	90	88	119	111	230
ZF7002	GVB-SS-KF40-P	37.5	Viton	Pneumatic	55	50	52	53	63	90	88	119	135	254
ZF7003	GVB-SS-KF50-M	50	Viton	Manual	75	59	56	51	81	104	123	167	128	295
ZF7004	GVB-SS-KF50-P	50	Viton	Pneumatic	75	59	56	53	81	104	123	167	154	321
