UHV series
CF Flange

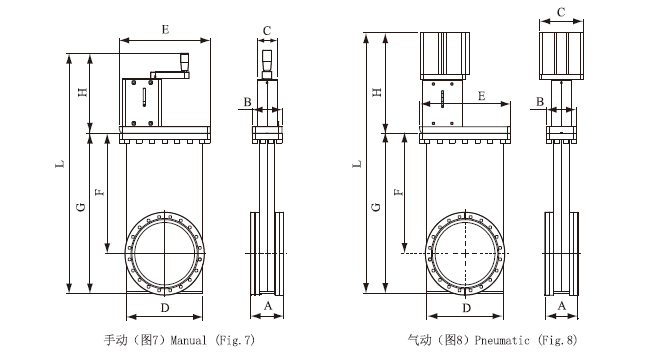

parts no.	Model	Port Dia	Bonnet seal	Actuator type	Flange O.D.	Bolt P.C.D.	Bolt size	A	B	C	D	E	F	G	H	L	price
ZF7017	GVB-SS-CF63-M	63.5	Metal	Manual	113.6	92.1	M8X8	69	76	46	112	145	189	251	183	434	$1700.00
ZF7018	GVB-SS-CF63-P	63.5	Metal	Pneumatic	113.6	92.1	M8X8	69	76	94	112	145	189	251	219	470	$1750.00
ZF7019	GVB-SS-CF100-M	100	Metal	Manual	151.6	130.3	M8X16	73	76	46	142	178	224	305	183	486	$2400.00
ZF7020	GVB-SS-CF100-P	100	Metal	Pneumatic	151.6	130.3	M8X16	73	76	94	142	178	224	305	223	528	$2450.00
ZF7021	GVB-SS-CF150-M	152	Metal	Manual	202.5	181	M8X20	78	76	51	195	232	294	392	260	652	$2900.00
ZF7022	GVB-SS-CF150-P	152	Metal	Pneumatic	202.5	181	M8X20	78	76	114	195	232	294	392	245	637	$3000.00
ZF7023	GVB-SS-CF200-M	200	Metal	Manual	253.2	231.8	M8X24	82	78	51	243	277	348	472	260	732
ZF7024	GVB-SS-CF200-P	200	Metal	Pneumatic	253.2	231.8	M8X24	82	78	114	243	277	348	472	245	717	$4400.00
