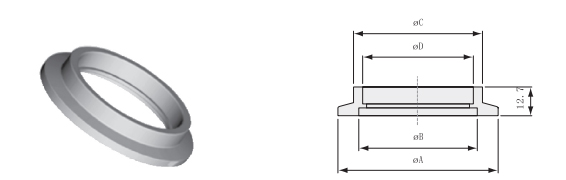

Name : KF Socket Weld Flange
| parts no. | Model | Material | A | B | C | D | price |
|---|---|---|---|---|---|---|---|
| KF1028 | KF10WS | 304 S.S. | 30 | 12.2 | 16.5 | 13 | $9.40 |
| KF1029 | KF16WS | 304 S.S. | 30 | 17.2 | 20.5 | 19.3 | $9.40 |
| KF1030 | KF25WS | 304 S.S. | 40 | 26.2 | 29 | 25.7 | $9.45 |
| KF1031 | KF40WS | 304 S.S. | 55 | 41.2 | 44.7 | 38.4 | $12.50 |
| KF1032 | KF50WS | 304 S.S. | 75 | 52.2 | 57.4 | 51 | $18.80 |
| KF1033 | KF63WS | 304 S.S. | 87 | 70 | 67.5 | 63.7 | |
| KF1034 | KF80WS | 304 S.S. | 114 | 83 | 98 | 89.5 | |
| KF1035 | KF100WS | 304 S.S. | 134 | 102 | 118 | 114.5 | |
| KF1036 | KS160WS | 304 S.S. | 190 | 153 | 174 | 165.5 |
