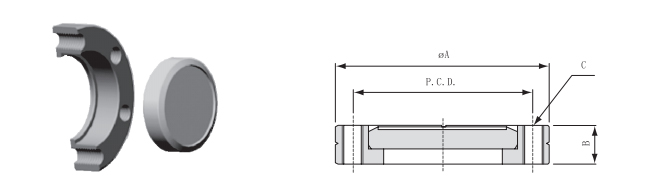

Name : CF Blank Rotatable-tapped Bolt Holes
| parts no. | Model | Material | A | B | C*No | P.C.D. | price |
|---|---|---|---|---|---|---|---|
| CF3055 | CR18BTAP | 304 S.S. | 33.8 | 7.5 | 4.4*6 | 26.9 | $16.20 |
| CF3056 | CR35BTAP | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 58.7 | $26.50 |
| CF3057 | CR63BTAP | 304 S.S. | 113.6 | 18 | 8.4*8 | 52.1 | $69.50 |
| CF3058 | CR100BTAP | 304 S.S. | 151.6 | 20 | 8.4*16 | 130.3 | $107.00 |
| CF3059 | CR150BTAP | 304 S.S. | 202.5 | 22 | 8.4*20 | 181 | $179.00 |
| CF3060 | CR200BTAP | 304 S.S. | 253.2 | 24.7 | 8.4*24 | 231.8 | $375.00 |
| CF3061 | CR250BTAP | 304 S.S. | 336.5 | 28.5 | 10.3*30 | 306.5 | $940.00 |
| CF3062 | CR300BTAP | 304 S.S. | 355.6 | 28.5 | 10.3*30 | 325.7 | $1280.00 |
| CF3063 | CR350BTAP | 304 S.S. | 419.1 | 28.5 | 10.3*36 | 388.9 | |
| CF3064 | CR18BTAP-316 | 316 S.S. | 33.8 | 7.5 | 4.4*6 | 26.9 | |
| CF3065 | CR35BTAP-316 | 316 S.S. | 69.5 | 12.7 | 6.7*6 | 58.7 | |
| CF3066 | CR63BTAP-316 | 316 S.S. | 113.6 | 18 | 8.4*8 | 52.1 | |
| CF3067 | CR100BTAP-316 | 316 S.S. | 151.6 | 20 | 8.4*16 | 130.3 | |
| CF3068 | CR150BTAP-316 | 316 S.S. | 202.5 | 22 | 8.4*20 | 181 | |
| CF3069 | CR200BTAP-316 | 316 S.S. | 253.2 | 24.7 | 8.4*24 | 231.8 | |
| CF3070 | CR250BTAP-316 | 316 S.S. | 336.5 | 28.5 | 10.3*30 | 306.5 | |
| CF3071 | CR300BTAP-316 | 316 S.S. | 355.6 | 28.5 | 10.3*30 | 325.7 | |
| CF3072 | CR350BTAP-316 | 316 S.S. | 419.1 | 28.5 | 10.3*36 | 388.9 |
