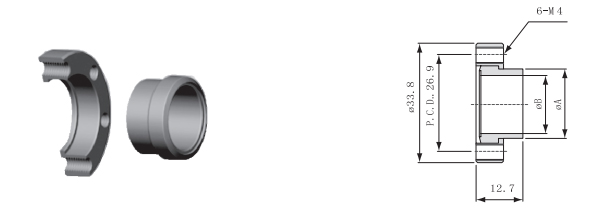

Name : 　CF16 Bored blank-neck(CR16) Rotatable-Tapped Bolt Holes

parts no.	Model	Material	A	B	price
CF3103	CR16B7TAPN	304 S.S.	6.35	4.5	$17.50
CF3104	CR16B12TAPN	304 S.S.	12.7	9.5	$17.50
CF3105	CR16B19TAPN	304 S.S.	19.05	16	$17.50
CF3106	CF16B7TAPN-316	316 S.S.	6.35	4.5
CF3107	CF16B12TAPN-316	316 S.S.	12.7	9.5
CF3108	CF16B19TAPN-316	316 S.S.	19.05	16
