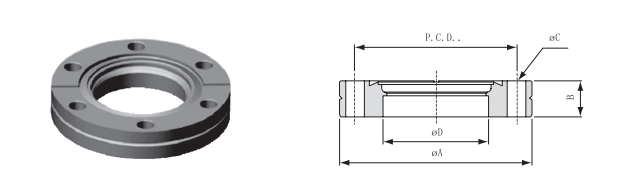

Name : CF Bored Flange nonrotatable
| parts no. | Model | Material | A | B | C*No | D | P.C.D. | price |
|---|---|---|---|---|---|---|---|---|
| CF3109 | CF35B25 | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 25.6 | 58.7 | $13.50 |
| CF3110 | CF35B38 | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 38.3 | 58.7 | $13.50 |
| CF3111 | CF35B42 | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 42.9 | 58.7 | $13.50 |
| CF3112 | CF63B51 | 304 S.S. | 113.6 | 18 | 8.4*8 | 51.1 | 92.1 | $50.50 |
| CF3113 | CF63B63 | 304 S.S. | 113.6 | 18 | 8.4*8 | 63.7 | 92.1 | $50.50 |
| CF3114 | CF100B102 | 304 S.S. | 151.6 | 20 | 8.4*16 | 101.8 | 130.3 | $74.00 |
| CF3115 | CF150B153 | 304 S.S. | 202.5 | 22 | 8.4*20 | 153.1 | 181 | $115.75 |
| CF3116 | CF200B204 | 304 S.S. | 253.2 | 24.7 | 8.4*24 | 203.7 | 231.8 | $280.00 |
| CF3117 | CF250B255 | 304 S.S. | 336.5 | 28.5 | 10.3*30 | 254.5 | 306.5 | |
| CF3118 | CF300B305 | 304 S.S. | 355.6 | 28.5 | 10.3*30 | 305.4 | 325.7 | |
| CF3119 | CF350B356 | 304 S.S. | 419.1 | 28.5 | 10.3*36 | 356.1 | 388.9 | |
| CF3120 | CF35B25-316 | 316 S.S | 69.5 | 12.7 | 6.7*6 | 25.6 | 58.7 | |
| CF3121 | CF35B38-316 | 316 S.S | 69.5 | 12.7 | 6.7*6 | 38.3 | 58.7 | |
| CF3122 | CF35B42-316 | 316 S.S | 69.5 | 12.7 | 6.7*6 | 42.9 | 58.7 | |
| CF3123 | CF63B51-316 | 316 S.S | 113.6 | 18 | 8.4*8 | 51.1 | 92.1 | |
| CF3124 | CF63B63-316 | 316 S.S | 113.6 | 18 | 8.4*8 | 63.7 | 92.1 | |
| CF3125 | CF100B102-316 | 316 S.S | 151.6 | 20 | 8.4*16 | 101.8 | 130.3 | |
| CF3126 | CF150B153-316 | 316 S.S | 202.5 | 22 | 8.4*20 | 153.1 | 181 | |
| CF3127 | CF200B204-316 | 316 S.S | 253.2 | 24.7 | 8.4*24 | 203.7 | 231.8 | |
| CF3128 | CF250B255-316 | 316 S.S | 336.5 | 28.5 | 10.3*30 | 254.5 | 306.5 | |
| CF3129 | CF300B305-316 | 316 S.S | 355.6 | 28.5 | 10.3*30 | 305.4 | 325.7 | |
| CF3130 | CF350B356-316 | 316 S.S | 419.1 | 28.5 | 10.3*36 | 356.1 | 388.9 |
