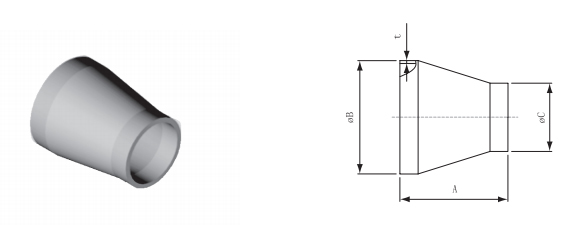

Name : Conical Reducers
| parts no. | Model | Material | A | B | C | t | price |
|---|---|---|---|---|---|---|---|
| GJ4073 | 25-16CR | 304 S.S. | 35 | 25.4 | 19.05 | 1.5 | $26.00 |
| GJ4074 | 40-16CR | 304 S.S. | 60.3 | 38.1 | 19.05 | 1.65 | $29.00 |
| GJ4075 | 40-25CR | 304 S.S. | 60.3 | 38.1 | 25.4 | 1.65 | $27.00 |
| GJ4076 | 50-25CR | 304 S.S. | 60.3 | 50.8 | 25.4 | 1.65 | $31.00 |
| GJ4077 | 50-40CR | 304 S.S. | 60.3 | 50.8 | 38.1 | 1.65 | $33.00 |
| GJ4078 | 63-40CR | 304 S.S. | 60.3 | 63.5 | 38.1 | 1.65 | $42.00 |
| GJ4079 | 63-50CR | 304 S.S. | 60.3 | 63.5 | 50.8 | 1.65 | $45.00 |
| GJ4080 | 80-50CR | 304 S.S. | 92 | 76.2 | 50.8 | 1.65 | $63.00 |
| GJ4081 | 80-63CR | 304 S.S. | 92 | 76.2 | 63.5 | 1.65 | $70.00 |
| GJ4082 | 100-50CR | 304 S.S. | 92 | 101.6 | 50.8 | 1.65 | $56.00 |
| GJ4083 | 100-63CR | 304 S.S. | 92 | 101.6 | 63.5 | 2.5 | $134.00 |
| GJ4084 | 100-80CR | 304 S.S. | 92 | 101.6 | 76.2 | 2.5 | $184.00 |
| GJ4085 | 150-80CR | 304 S.S. | 152.4 | 152.4 | 76.2 | 3 | |
| GJ4086 | 150-100CR | 304 S.S. | 152.4 | 152.4 | 101.6 | 3 |
