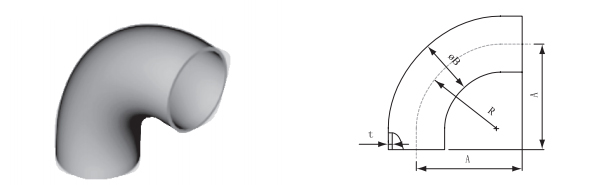

Name : 90°Elbows with Tangent
| parts no. | Model | Material | A | B | R | t | price |
|---|---|---|---|---|---|---|---|
| GJ4095 | 16ELT90A | 304 S.S. | 34.5 | 19.05 | 28.6 | 1.65 | $25.00 |
| GJ4096 | 25ELT90A | 304 S.S. | 52.4 | 25.4 | 38.1 | 1.65 | $27.00 |
| GJ4097 | 40ELT90A | 304 S.S. | 74.6 | 38.1 | 57.2 | 1.65 | $28.00 |
| GJ4098 | 50ETL90A | 304 S.S. | 103.2 | 50.8 | 76.2 | 1.65 | $33.00 |
| GJ4099 | 63ELT90A | 304 S.S. | 131.8 | 63.5 | 95.3 | 1.65 | $52.00 |
| GJ4100 | 80ELT90A | 304 S.S. | 160.3 | 76.2 | 114.3 | 1.65 | $60.00 |
| GJ4101 | 100ELT90A | 304 S.S. | 211.1 | 101.6 | 152.4 | 2.00 | $98.00 |
