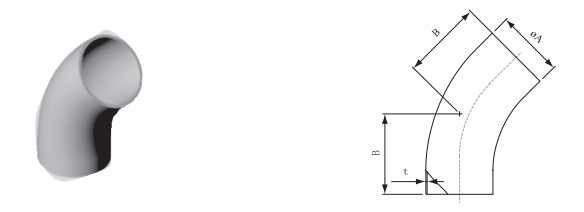

Name : 45°Elbows with Tangents
| parts no. | Model | Material | A | B | t | price |
|---|---|---|---|---|---|---|
| GJ4109 | 16ELT45A | 304 S.S. | 19.05 | 19.3 | 1.65 | $19.00 |
| GJ4110 | 25ELT45A | 304 S.S. | 25.4 | 30.2 | 1.65 | $23.00 |
| GJ4111 | 40ELT45A | 304 S.S. | 38.1 | 41.3 | 1.65 | $26.00 |
| GJ4112 | 50ELT45A | 304 S.S. | 50.8 | 58.7 | 1.65 | $26.00 |
| GJ4113 | 63ELT45A | 304 S.S. | 63.5 | 76.2 | 1.65 | $37.00 |
| GJ4114 | 80ELT45A | 304 S.S. | 76.2 | 93.7 | 1.65 | $57.00 |
| GJ4115 | 100ELT45A | 304 S.S. | 101.6 | 122.2 | 2.00 | $70.00 |
