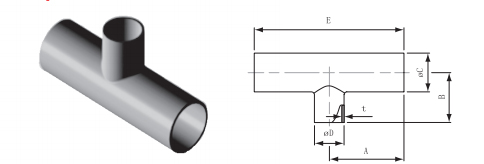

Name : Unequal Tees
| parts no. | Model | Material | A | B | C | D | E | t | price |
|---|---|---|---|---|---|---|---|---|---|
| GJ4132 | 25UT16A | 304 S.S. | 48.2 | 33.7 | 25.4 | 19.05 | 96.4 | 1.65 | $25.00 |
| GJ4133 | 40UT16A | 304 S.S. | 57.2 | 48.2 | 38.1 | 19.05 | 114.3 | 1.65 | $30.00 |
| GJ4134 | 40UT25A | 304 S.S. | 57.2 | 54 | 38.1 | 25.4 | 114.3 | 1.65 | $29.00 |
| GJ4135 | 50UT16A | 304 S.S. | 76.2 | 54.4 | 50.8 | 19.05 | 152.4 | 1.65 | $46.00 |
| GJ4136 | 50UT25A | 304 S.S. | 76.2 | 60.3 | 50.8 | 25.4 | 152.4 | 1.65 | $56.00 |
| GJ4137 | 50UT40A | 304 S.S. | 76.2 | 63.5 | 50.8 | 38.1 | 152.4 | 1.65 | $75.00 |
| GJ4138 | 80UT63A | 304 S.S. | 82.5 | 82.5 | 76.2 | 63.5 | 165 | 1.65 | $99.00 |
| GJ4139 | 100UT50A | 304 S.S. | 98.4 | 101.6 | 101.6 | 50.8 | 196.8 | 2 | $108.00 |
| GJ4140 | 100UT63A | 304 S.S. | 98.4 | 95.3 | 101.6 | 63.5 | 196.8 | 2 | $136.00 |
| GJ4141 | 100UT80A | 304 S.S. | 98.4 | 95.3 | 101.6 | 76.2 | 196.8 | 2 | $127.00 |
| GJ4142 | 150UT80A | 304 S.S. | 127 | 120.7 | 152.4 | 76.2 | 254 | 2.77 | |
| GJ4143 | 150UT100A | 304 S.S. | 127 | 123.8 | 152.4 | 101.6 | 254 | 2.77 | $500 |
