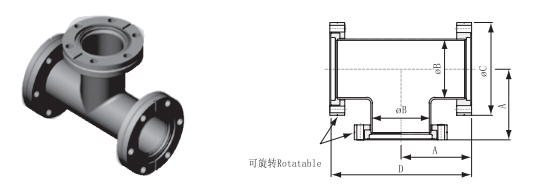

Name : CF Tees - 2 flanges Rotatable
| parts no. | Model | Material | A | B | C | D | price |
|---|---|---|---|---|---|---|---|
| GC4240 | CR16T | 304 S.S. | 47.2 | 19.05 | 33.8 | 94.4 | |
| GC4241 | CR35T | 304 S.S. | 62.5 | 38.1 | 69.5 | 125 | |
| GC4242 | CR63T | 304 S.S. | 85.7 | 63.5 | 113.6 | 171.4 | |
| GC4243 | CR100T | 304 S.S. | 109.5 | 101.6 | 151.6 | 219 | |
| GC4244 | CR150T | 304 S.S. | 139.7 | 152.4 | 202.5 | 279.4 |
