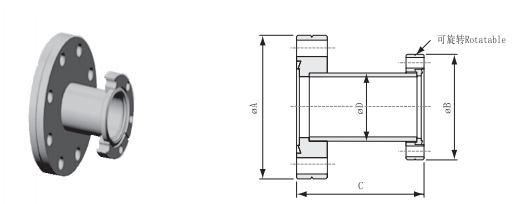

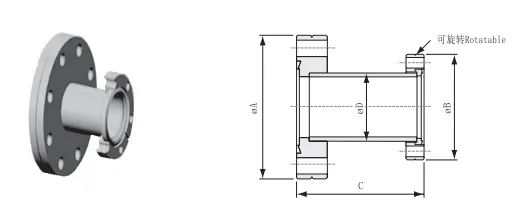

Name : CF Reducing Adaptor - Small Flange Rotatable
| parts no. | Model | Material | A | B | C | D | price |
|---|---|---|---|---|---|---|---|
| ZH5042 | CF35RA16R | 304 S.S. | 69.5 | 33.8 | 76.2 | 19.05 | |
| ZH5043 | CF63RA16R | 304 S.S. | 113.6 | 33.8 | 76.2 | 19.05 | |
| ZH5044 | CF63RA35R | 304 S.S. | 113.6 | 69.5 | 76.2 | 38.1 | |
| ZH5045 | CF100RA35R | 304 S.S. | 151.6 | 69.5 | 76.2 | 38.1 | |
| ZH5046 | CF100RA63R | 304 S.S. | 151.6 | 113.6 | 76.2 | 63.5 | |
| ZH5047 | CF150RA35R | 304 S.S. | 202.5 | 69.5 | 76.2 | 38.1 | |
| ZH5048 | CF150RA63R | 304 S.S. | 2O2.5 | 113.6 | 76.2 | 63.5 | |
| ZH5049 | CF150RA100R | 304 S.S. | 2O2.5 | 151.6 | 76.2 | 101.6 |
