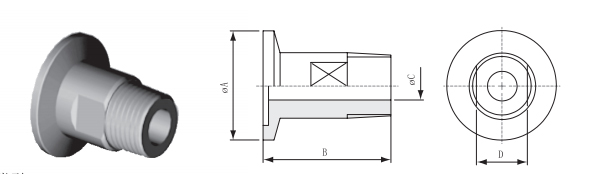

Name : KF male pipe adaptor Thread type:NPT
| parts no. | Model | Material | A | B | C | D | Thread | price |
|---|---|---|---|---|---|---|---|---|
| ZH5093 | KF16M NPT3 | 304 S.S. | 30 | 35 | 4.7 | 10 | 1/8”NPT | $42.00 |
| ZH5094 | KF16M NPT6 | 304 S.S. | 30 | 35 | 7.1 | 14 | 1/4”NPT | $43.00 |
| ZH5095 | KF25M NPT3 | 304 S.S. | 40 | 35 | 4.7 | 10 | 1/8”NPT | $44.00 |
| ZH5096 | KF25M NPT6 | 304 S.S. | 40 | 35 | 7.1 | 14 | 1/4”NPT | $49.00 |
| ZH5097 | KF25M NPT13 | 304 S.S. | 40 | 40 | 11.9 | 22 | 1/2”NPT | $59.00 |
| ZH5098 | KF25M NPT19 | 304 S.S. | 40 | 40 | 15.9 | 27 | 3/4”NPT | $65.00 |
| ZH5099 | KF40M NPT6 | 304 S.S. | 55 | 35 | 7.1 | 14 | 1/4”NPT | $51.00 |
| ZH5100 | KF40M NPT13 | 304 S.S. | 55 | 40 | 11.9 | 22 | 1/2”NPT | $64.00 |
| ZH5101 | KF40M NPT19 | 304 S.S. | 55 | 40 | 15.9 | 27 | 3/4”NPT | $78.00 |
| ZH5102 | KF40M NPT25 | 304 S.S. | 55 | 45 | 22.2 | 36 | 1”NPT | |
| ZH5103 | KF50M NPT6 | 304 S.S. | 75 | 35 | 7.1 | 14 | 1/4”NPT | $51.00 |
| ZH5104 | KF50M NPT13 | 304 S.S. | 75 | 40 | 11.9 | 22 | 1/2”NPT | $65.00 |
| ZH5105 | KF50MN PT19 | 304 S.S. | 75 | 40 | 15.9 | 27 | 3/4”NPT | $85.00 |
| ZH5106 | KF50M NPT25 | 304 S.S. | 75 | 45 | 22.2 | 36 | 1”NPT |
