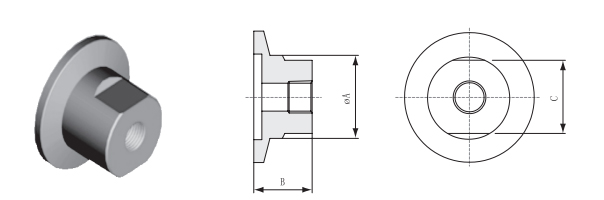

Name : KF Female Pipe Adaptor Thread type: NPT
| parts no. | Model | Material | A | B | C | Thread | price |
|---|---|---|---|---|---|---|---|
| ZH5115 | KF16FNPT3 | 304 S.S. | 19.05 | 25 | 17 | 1/8”NPT | $36.00 |
| ZH5116 | KF25FNPT3 | 304 S.S. | 25.4 | 25 | 19 | 1/8”NPT | $36.00 |
| ZH5117 | KF40FNPT3 | 304 S.S. | 38.1 | 25 | 32 | 1/8”NPT | $40.00 |
| ZH5118 | KF50FNPT3 | 304 S.S. | 50.8 | 25 | 46 | 1/8”NPT | |
| ZH5119 | KF16FNPT6 | 304 S.S. | 19.05 | 25 | 17 | 1/4”NPT | $40.85 |
| ZH5120 | KF25FNPT6 | 304 S.S. | 25.4 | 25 | 19 | 1/4”NPT | $41.80 |
| ZH5121 | KF40FNPT6 | 304 S.S. | 38.1 | 25 | 32 | 1/4”NPT | $44.60 |
| ZH5122 | KF50FNPT6 | 304 S.S. | 50.8 | 25 | 46 | 1/4”NPT | $49.40 |
