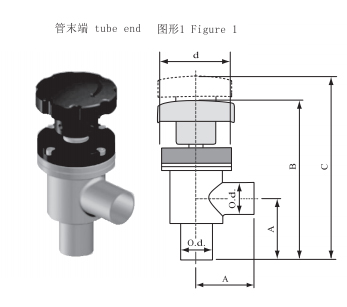

ANGLE VACUUM VALVE Manually Operated with bellows Port connections : Tube End
parts no.	Model	O.d	A	B	C	D	price
FM6001	AVB-TE16-M	0.75	2.00	5.25	6.00	2.24
FM6002	AVB-TE25-M	1.00	1.88	4.97	5.70	2.24
FM6003	AVB-TE40-M	1.50	2.25	6.28	7.50	2.98
FM6004	AVB-TE50-M	2.00	3.25	8.00	9.76	3.48
FM6005	AVB-TE63-M	2.50	3.00	8.37	10.04	3.92
FM6006	AVB-TE80-M	3.00	3.25	8.69	10.57	4.49

Note:All dimensions shown on this page are in inch
Specification
Polished 304 stainless steel body
3/4-2 inch(19.05-50.8mm) port Ods
Bakeable to 150︒C
Viton seal bonnet
10⁻⁹ torr vacuum rating KF,ISO and CF flange
