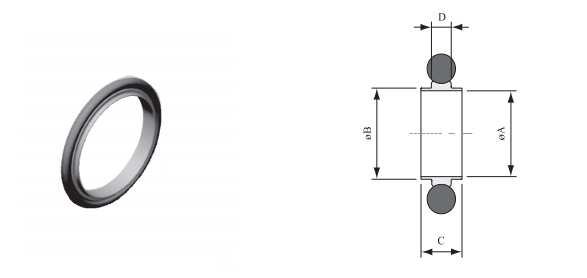

Name : KF centering with O ring
KF centering ring , O’ring
| parts no. | Model | Material C/R | O’ring | O’ring size | A | B | C | D | price |
|---|---|---|---|---|---|---|---|---|---|
| ZX8011 | KF10CRVS | 304 S.S. | Viton | AS-311 | 10 | 12 | 8 | 3.9 | $5.80 |
| ZX8012 | KF16CRVS | 304 S.S. | Voiton | AS-314 | 16 | 17 | 8 | 3.9 | $5.80 |
| ZX8013 | KF25CRVS | 304 S.S. | Viton | AS-320 | 25 | 26 | 8 | 3.9 | $7.80 |
| ZX8014 | KF40CRVS | 304 S.S. | Viton | AS-326 | 40 | 41 | 8 | 3.9 | $11.70 |
| ZX8015 | KF50CRVS | 304 S.S. | Viton | AS-330 | 50 | 52 | 8 | 3.9 | $13.00 |
| ZX8016 | KF10CRVA | Al | Viton | AS-311 | 10 | 12 | 8 | 3.9 | $5.00 |
| ZX8017 | KF16CRVA | Al | Viton | AS-314 | 16 | 17 | 8 | 3.9 | $5.20 |
| ZX8018 | KF25CRVA | Al | Viton | AS-320 | 25 | 26 | 8 | 3.9 | $6.00 |
| ZX8019 | KF40CRVA | Al | Viton | AS-326 | 40 | 41 | 8 | 3.9 | $8.00 |
| ZX8020 | KF50CRVA | Al | Viton | AS-330 | 50 | 52 | 8 | 3.9 | $10.00 |
| ZX8021 | KF10CRNS | 304 S.S. | NBR | AS-311 | 10 | 12 | 8 | 3.9 | $5.00 |
| ZX8022 | KF16CRNS | 304 S.S. | NBR | AS-314 | 16 | 17 | 8 | 3.9 | $4.50 |
| ZX8023 | KF25CRNS | 304 S.S. | NBR | AS-320 | 25 | 26 | 8 | 3.9 | $6.00 |
| ZX9024 | KF40CRNS | 304 S.S. | NBR | AS-326 | 40 | 41 | 8 | 3.9 | $9.00 |
| ZX8025 | KF50CRNS | 304 S.S. | NBR | AS-330 | 50 | 52 | 8 | 3.9 | $10.00 |
| ZX8026 | KF10CRNA | Al | NBR | AS-311 | 10 | 12 | 8 | 3.9 | $4.30 |
| ZX8027 | KF16CRNA | Al | NBR | AS-314 | 16 | 17 | 8 | 3.9 | $3.00 |
| ZX8028 | KF25CRNA | Al | NBR | AS-320 | 25 | 26 | 8 | 3.9 | $4.00 |
| ZX8029 | KF40CRNA | Al | NBR | AS-326 | 40 | 41 | 8 | 3.9 | $5.00 |
| ZX8030 | KF50CRNA | Al | NBR | AS-330 | 50 | 52 | 8 | 3.9 | $10.00 |
O’ring color for NBR material is black, brown is available upon request
O’ring color for Viton material is brown, black is availabl upon request
