Name : KF Centering ring adaptor, O’ring
KF centering ring adaptor, O’ring

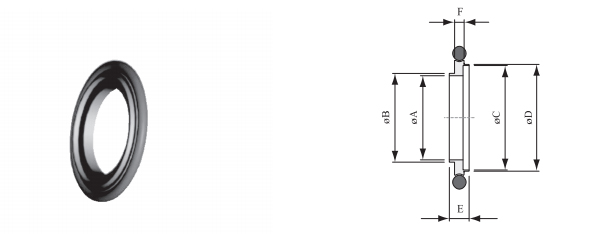

| parts no. | Model | Material C/R | O’ring | O’ring size | A | B | C | D | E | F | price |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZX8039 | KF10CR16VS | 304 S.S. | Viton | AS-314 | 10 | 12 | 16 | 17 | 8 | 3.9 | $8.00 |
| ZX8040 | KF20CR16VS | 304 S.S. | Viton | AS-320 | 20 | 22 | 25 | 26 | 8 | 3.9 | $20.00 |
| ZX8041 | KF32CR16VS | 304 S.S. | Viton | AS-326 | 32 | 34 | 40 | 41 | 8 | 3.9 | $38.00 |
| ZX8042 | KF10CR16VA | Aluminum | Viton | AS-314 | 10 | 12 | 16 | 17 | 8 | 3.9 | |
| ZX8043 | KF20CR16VA | Aluminum | Viton | AS-320 | 20 | 22 | 25 | 26 | 8 | 3.9 | |
| ZX8044 | KF32CR16VA | Aluminum | Viton | AS-326 | 32 | 34 | 40 | 41 | 8 | 3.9 | |
| ZX8045 | KF10CR16NS | 304 S.S. | NBR | AS-314 | 10 | 12 | 16 | 17 | 8 | 3.9 | |
| ZX8046 | KF20CR16NS | 304 S.S. | NBR | AS-320 | 20 | 22 | 25 | 26 | 8 | 3.9 | |
| ZX8047 | KF32CR16NS | 304 S.S. | NBR | AS-326 | 32 | 34 | 40 | 41 | 8 | 3.9 | |
| ZX8048 | KF10CR16NA | Aluminum | NBR | AS-314 | 10 | 12 | 16 | 17 | 8 | 3.9 | |
| ZX8049 | KF20CR16NA | Aluminum | NBR | AS-320 | 20 | 22 | 25 | 26 | 8 | 3.9 | |
| ZX8050 | KF32CR16NA | Aluminum | NBR | AS-326 | 32 | 34 | 40 | 41 | 8 | 3.9 |
O’ring color for NBR material is black, brown is available upon request
O’ring color for Viton material is brown, black is availabl upon request
