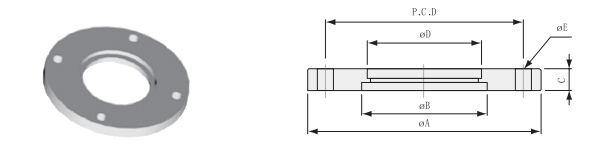

Name : ISO BF Bolted Flange
| parts no | Model | Material | A | B | C | D | E*No | P.C.D. | price |
|---|---|---|---|---|---|---|---|---|---|
| ISO 2019 | ISO 63BF | 304 S.S. | 130 | 70 | 12 | 63.7 | 9*4 | 110 | $74.50 |
| ISO 2020 | ISO 80BF | 304 S.S. | 145 | 83 | 12 | 76.4 | 9*8 | 125 | $97.00 |
| ISO 2021 | ISO 100BF | 304 S.S. | 165 | 102 | 12 | 101.8 | 9*8 | 145 | $120.80 |
| ISO 2022 | ISO 160BF | 304 S.S. | 225 | 153 | 16 | 152.9 | 11*8 | 200 | $160.50 |
| ISO 2023 | ISO 200BF | 304 S.S. | 285 | 213 | 16 | 203.7 | 11*12 | 260 | $227.00 |
| ISO 2024 | ISO 250BF | 304 S.S. | 33 | 261 | 16 | 254.5 | 11*12 | 310 | $322.00 |
| ISO 2025 | ISO 320BF | 304 S.S. | 425 | 318 | 20 | 305.3 | 14*12 | 395 | $795.00 |
| ISO 2026 | ISO 400BF | 304 S.S. | 510 | 400 | 20 | 406.9 | 14*16 | 480 | $1165.00 |
| ISO 2027 | ISO 500BF | 304 S.S. | 610 | 501 | 20 | 508.8 | 14*16 | 580 | $2310.00 |
