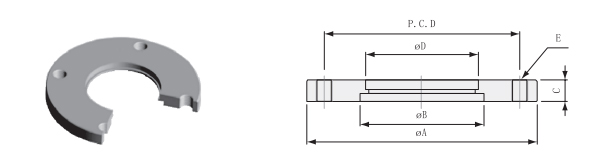

Name : ISO BF Bolted Flange - Tapped
| parts no. | Model | Material | A | B | C | D | E*No | P.C.D. | price |
|---|---|---|---|---|---|---|---|---|---|
| ISO 2028 | ISO 63BFTAP | 304 S.S. | 130 | 70 | 12 | 63.7 | M8*4 | 110 | $76.70 |
| ISO 2029 | ISO 80BFTAP | 304 S.S. | 145 | 83 | 12 | 76.4 | M8*8 | 125 | $109.10 |
| ISO 2030 | ISO 100BFTAP | 304 S.S. | 165 | 102 | 12 | 101.8 | M8*8 | 145 | $120.50 |
| ISO 2031 | ISO 160BFTAP | 304 S.S. | 225 | 153 | 16 | 152.9 | M10*8 | 200 | $235.50 |
| ISO 2032 | ISO 200BFTAP | 304 S.S. | 285 | 213 | 16 | 203.7 | M10*12 | 260 | $295.20 |
| ISO 2033 | ISO 250BFTAP | 304 S.S. | 33 | 261 | 16 | 254.5 | M10*12 | 310 | $375.50 |
| ISO 2034 | ISO 320BFTAP | 304 S.S. | 425 | 318 | 20 | 305.3 | M12*12 | 395 | $990.00 |
| ISO 2035 | ISO 400BFTAP | 304 S.S. | 510 | 400 | 20 | 406.9 | M12*16 | 480 | $1205.00 |
| ISO 2036 | ISO 500BFTAP | 304 S.S. | 610 | 501 | 20 | 508.8 | M12*16 | 580 | $1860.00 |
