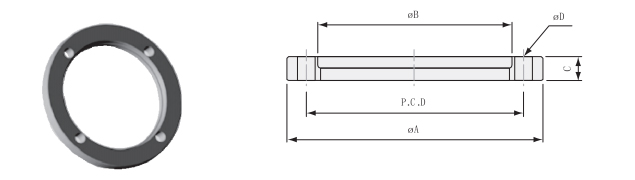

Name : ISO (RBR) Rotatable Bolted Ring
| parts no. | Model | Material | A | B | C | D*No | P.C.D. | price |
|---|---|---|---|---|---|---|---|---|
| ISO 2037 | ISO 63RBR | 304 S.S. | 130 | 98.5 | 12 | 9*4 | 110 | $154.00 |
| ISO 2038 | ISO 80RBR | 304 S.S. | 145 | 113.5 | 12 | 9*8 | 125 | $154.00 |
| ISO 2039 | ISO 100RBR | 304 S.S. | 165 | 133.5 | 12 | 11*8 | 145 | $174.00 |
| ISO 2040 | ISO 160RBR | 304 S.S. | 225 | 185.7 | 16 | 11*12 | 200 | $349.00 |
| ISO 2041 | ISO 200RBR | 304 S.S. | 285 | 245.7 | 16 | 11*12 | 260 | $384.00 |
| ISO 2042 | ISO 250RBR | 304 S.S. | 335 | 295.7 | 16 | 14*12 | 310 | $474.00 |
| ISO 2043 | ISO 320RBR | 304 S.S. | 425 | 375.8 | 20 | 14*12 | 395 | $949.00 |
| ISO 2044 | ISO 400RBR | 304 S.S. | 510 | 458.8 | 20 | 14*16 | 480 | $1029.00 |
| ISO 2045 | ISO 500RBR | 304 S.S. | 610 | 558.8 | 20 | 14*16 | 580 | $1871.00 |
