ANGLE VALVE
Pneumatically Actuated with bellows attatched reed sensor
Port connection : KF flange

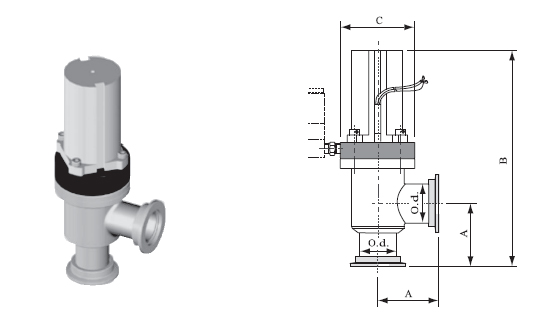

| parts no. | Model | O.d | A | B | C | price |
| FM6123 | AVBS-KF16-P | 0.75 | 2.15 | 6.78 | 2.24 |
|
| FM6124 | AVBS-KF25-P | 1.00 | 2.03 | 6.53 | 2.24 |
|
| FM6125 | AVBS-KF40-P | 1.50 | 2.40 | 8.28 | 2.98 |
|
| FM6126 | AVBS-KF50-P | 2.00 | 3.40 | 11.08 | 3.48 |
|
Specification
Polished 304 stainless body
3/4-2 inch port Ods
3/4-2 air to open , air to close (normally close)
Operating air pressure
4-6.5 kg/cm²
Sensor specification :Voltage DC/AC 4-240V
Amps 5-40mA
Option :air solenoid DC24V,AC24V,AC110V,AC220V
Viton seal bonnet
10⁻⁹ torr vacuum rating KF and CF flange
