ANGLE VALVE
Pneumatically Actuated with bellows attatched reed sensor
Port connection : CF flange

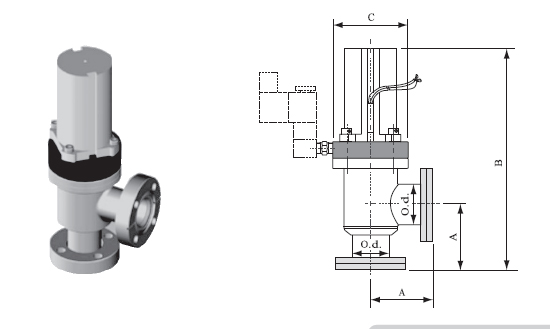

| parts no. | Model | O.d | A | B | C | price |
| FM6127 | AVBS-CR16-P | 0.75 | 2.50 | 7.13 | 2.24 |
|
| FM6128 | AVBS-CR35-P | 1.50 | 2.46 | 8.33 | 2.98 |
|
Specification
Polished 304 stainless steel body
3/4-2 inch port Ods
3/4-2 air to open , air to close (normal close)
4-6.5 kg/cm² operating air pressure
Sensor specification :Voltage DC/AC 4-240V
Amps 5-40mA
Option : air solenoid DC24V,AC24V,AC110V,AC220V
Viton seal bonnet
10⁻⁹ torr vacuum rating KF and CF flange
