Y-INLINE VAVLE
Pneumatically Actuated with bellows
Port connection:Tube end

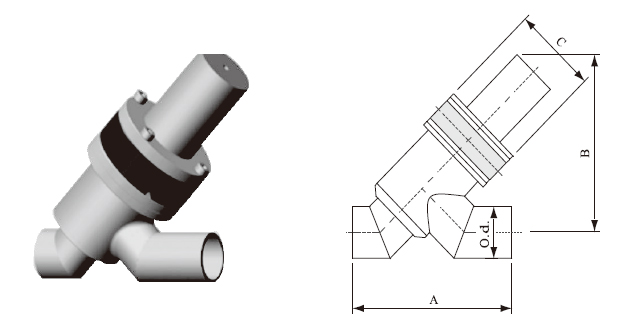

parts no.	Model	O.d	A	B	C	price
FM6155	YVB-TE16-P	0.75	3.70	4.15	2.24
FM6156	YVB-TE25-P	1.00	3.90	4.16	2.24
FM6157	YVB-TE40-P	1.50	4.82	5.71	2.98
FM6158	YVB-TE50-P	2.00	6.70	7.15	3.48
FM6159	YVB-TE63-P2	2.50	7.75	7.87	3.92

Note : All dimensions shown on this page are in inch
Polished 304 stainless steel body
3/4-2 inch port Ods
3/4-2 inch air to open,spring to close
over 2 inch
Operating air pressure
4-6.5 kg/cm²
Bakeable to 150︒C
Viton seal bonnet
10⁻⁹ torr vacuum rating KF and CF flange
