Y-INLINE VAVLE
Pneumatically Actuated with bellows
Port connection:KF flange

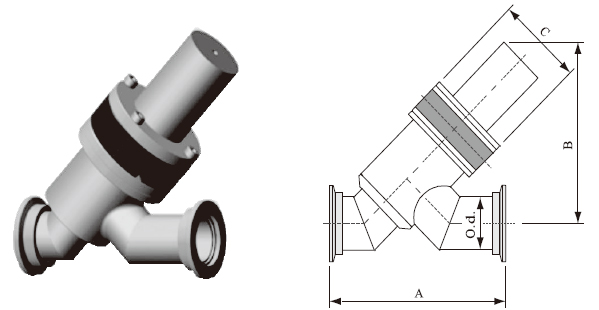

parts no.	Model	O.d	A	B	C	price
FM6160	YVB-KF16-P	0.75	4.00	4.15	2.24	$370.00
FM6161	YVB-KF25-P	1.00	4.20	4.16	2.24	$425.00
FM6162	YVB-KF40-P	1.50	5.12	5.71	2.98	$470.00
FM6163	YVB-KF50-P	2.00	7.00	7.15	3.48	$640.00

Note: All dimensions shown on this page are in inch
Polished 304 stainless body
3/4-2 inch port Ods
3/4-2 inch air to open,spring to close
over 2 inch
Operating air pressure
4-6.5 kg/cm²
Bakeable to 150︒C
Viton seal bonnet
10⁻⁹ torr vacuum rating KF and CF flange
