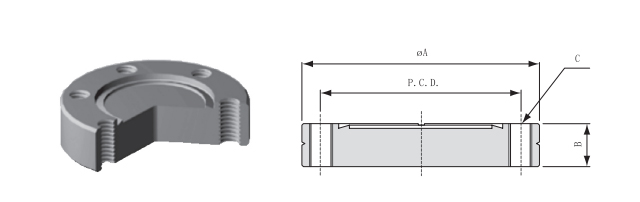

Name : CF blank Nonrotatable-taped Bolt holes
| parts no. | Model | Material | A | B | C*No | P.C.D. | price |
|---|---|---|---|---|---|---|---|
| CF3019 | CF16BTAP | 304 S.S | 33.8 | 7.5 | 4.4*6 | 26.9 | $15.15 |
| CF3020 | CF35BTAP | 304 S.S | 69.5 | 12.7 | 6.7*6 | 58.7 | $20.08 |
| CF3021 | CF63BTAP | 304 S.S | 113.6 | 18 | 8.4*8 | 52.1 | $59.95 |
| CF3022 | CF100BTAP | 304 S.S | 151.6 | 20 | 8.4*16 | 130.3 | $93.00 |
| CF3023 | CF150BTAP | 304 S.S | 202.5 | 22 | 8.4*20 | 181 | $150.00 |
| CF3024 | CF200BTAP | 304 S.S | 253.2 | 24.7 | 8.4*24 | 231.8 | $315.00 |
| CF3025 | CF250BTAP | 304 S.S | 336.5 | 28.5 | 10.3*30 | 306.5 | $575.00 |
| CF3026 | CF300BTAP | 304 S.S | 355.6 | 28.5 | 10.3*30 | 325.7 | $765.00 |
| CF3027 | CF350BTAP | 304 S.S | 419.1 | 28.5 | 10.3*36 | 388.9 | $1330.00 |
| CF3028 | CF16BTAP-316 | 316 S.S. | 33.8 | 7.5 | 4.4*6 | 26.9 | |
| CF3029 | CF35BTAP-316 | 316 S.S. | 69.5 | 12.7 | 6.7*6 | 58.7 | |
| CF3030 | CF63BTAP-316 | 316 S.S. | 113.6 | 18 | 8.4*8 | 52.1 | |
| CF3031 | CF100BTAP-316 | 316 S.S. | 151.6 | 20 | 8.4*16 | 130.3 | |
| CF3032 | CF150BTAP-316 | 316 S.S. | 202.5 | 22 | 8.4*20 | 181 | |
| CF3033 | CF200BTAP-316 | 316 S.S. | 253.2 | 24.7 | 8.4*24 | 231.8 | |
| CF3034 | CF250BTAP-316 | 316 S.S. | 336.5 | 28.5 | 10.3*30 | 306.5 | |
| CF3035 | CF300BTAP-316 | 316 S.S. | 355.6 | 28.5 | 10.3*30 | 325.7 | |
| CF3036 | CF350BTAP-316 | 316 S.S. | 419.1 | 28.5 | 10.3*36 | 388.9 |
