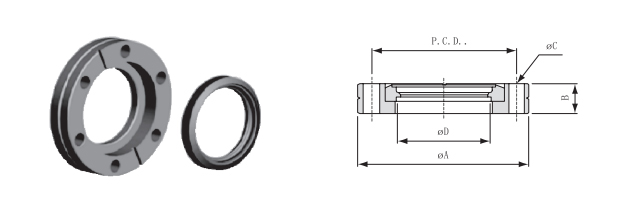

Name : CF Bored flange rotatable
| parts no. | Model | Material | A | B | C*No | D | P.C.D. | price |
|---|---|---|---|---|---|---|---|---|
| CF3153 | CR35B25 | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 25.6 | 58.7 | $20.00 |
| CF3154 | CR35B38 | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 38.3 | 58.7 | |
| CF3155 | CR35B42 | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 42.9 | 58.7 | |
| CF3156 | CR63B51 | 304 S.S. | 113.6 | 19 | 8.4*8 | 51.1 | 92.1 | |
| CF3157 | CR63B63 | 304 S.S. | 113.6 | 19 | 8.4*8 | 63.7 | 92.1 | |
| CF3158 | CR100B102 | 304 S.S. | 151.6 | 21.5 | 8.4*16 | 101.8 | 130.3 | |
| CF3159 | CR150B153 | 304 S.S. | 202.5 | 24 | 8.4*20 | 153.1 | 181 | |
| CF3160 | CR200B204 | 304 S.S. | 253.2 | 24.7 | 8.4*24 | 203.7 | 231.8 | |
| CF3161 | CR250B255 | 304 S.S. | 336.5 | 28.5 | 10.3*30 | 254.5 | 306.5 | |
| CF3162 | CR300B305 | 304 S.S. | 355.6 | 28.5 | 10.3*30 | 305.4 | 325.7 | |
| CF3163 | CR350B356 | 304 S.S. | 419.1 | 28.5 | 10.3*36 | 356.1 | 388.9 | |
| CF3164 | CR35B25-316 | 316 S.S | 69.5 | 12.7 | 6.7*6 | 25.6 | 58.7 | |
| CF3165 | CR35B38-316 | 316 S.S | 69.5 | 12.7 | 6.7*6 | 38.3 | 58.7 | |
| CF3166 | CR35B42-316 | 316 S.S | 69.5 | 12.7 | 6.7*6 | 42.9 | 58.7 | |
| CF3167 | CR63B51-316 | 316 S.S | 113.6 | 19 | 8.4*8 | 51.1 | 92.1 | |
| CF3168 | CR63B63-316 | 316 S.S | 113.6 | 19 | 8.4*8 | 63.7 | 92.1 | |
| CF3169 | CR100B102-316 | 316 S.S | 151.6 | 21.5 | 8.4*16 | 101.8 | 130.3 | |
| CF3170 | CR150B153-316 | 316 S.S | 202.5 | 24 | 8.4*20 | 153.1 | 181 | |
| CF3171 | CR200B204-316 | 316 S.S | 253.2 | 24.7 | 8.4*24 | 203.7 | 231.8 | |
| CF3172 | CR250B255-316 | 316 S.S | 336.5 | 28.5 | 10.3*30 | 254.5 | 306.5 | |
| CF3173 | CR300B305-316 | 316 S.S | 355.6 | 28.5 | 10.3*30 | 305.4 | 325.7 | |
| CF3174 | CR350B356-316 | 316 S.S | 419.1 | 28.5 | 10.3*36 | 356.1 | 388.9 |
