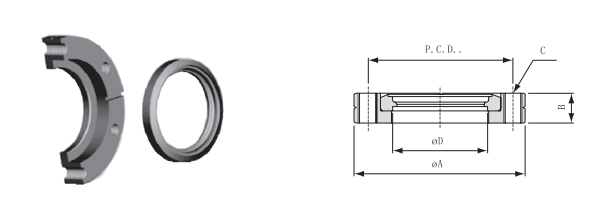

Name : CF Bored flange rotatable-tapped bolt-holes
| parts no. | Model | Material | A | B | C*No | D | P.C.D. | price |
|---|---|---|---|---|---|---|---|---|
| CF3175 | CF35B25TAP | 304 S.S. | 69.5 | 12.7 | M6*6 | 25.6 | 58.7 | $27.00 |
| CF3176 | CF35B38TAP | 304 S.S. | 69.5 | 12.7 | M6*6 | 38.3 | 58.7 | |
| CF3177 | CF35B42TAP | 304 S.S. | 69.5 | 12.7 | M6*6 | 42.9 | 58.7 | |
| CF3178 | CF63B51TAP | 304 S.S. | 113.6 | 19 | M8*8 | 51.1 | 92.1 | |
| CF3179 | CF63B63TAP | 304 S.S. | 113.6 | 19 | M8*8 | 63.7 | 92.1 | |
| CF3180 | CF100B102TAP | 304 S.S. | 151.6 | 21.5 | M8*16 | 101.8 | 130.3 | |
| CF3181 | CF150B153TAP | 304 S.S. | 202.5 | 24 | M8*20 | 153.1 | 181 | |
| CF3182 | CF200B204TAP | 304 S.S. | 253.2 | 24.7 | M8*24 | 203.7 | 231.8 | |
| CF3183 | CF250B255TAP | 304 S.S. | 336.5 | 28.5 | M10*30 | 254.4 | 306.5 | |
| CF3184 | CF300B305TAP | 304 S.S. | 355.6 | 28.5 | M10*30 | 305.4 | 325.7 | |
| CF3185 | CF350B356TAP | 304 S.S. | 419.1 | 28.5 | M10*36 | 356.1 | 388.9 | |
| CF3186 | CF35B25-316TAP | 316 S.S | 69.5 | 12.7 | M6*6 | 25.6 | 58.7 | |
| CF3187 | CF35B38-316TAP | 316 S.S | 69.5 | 12.7 | M6*6 | 38.3 | 58.7 | |
| CF3188 | CF35B42-316TAP | 316 S.S | 69.5 | 12.7 | M6*6 | 42.9 | 58.7 | |
| CF3189 | CF63B51TAP-316 | 316 S.S | 113.6 | 19 | M8*8 | 51.1 | 92.1 | |
| CF3190 | CF63B63TAP-316 | 316 S.S | 113.6 | 19 | M8*8 | 63.7 | 92.1 | |
| CF3191 | CF100B102TAP-316 | 316 S.S | 151.6 | 21.5 | M8*16 | 101.8 | 130.3 | |
| CF3192 | CF150B153TAP-316 | 316 S.S | 202.5 | 24 | M8*20 | 153.1 | 181 | |
| CF3193 | CF200B204TAP-316 | 316 S.S | 253.2 | 24.7 | M8*24 | 203.7 | 231.8 | |
| CF3194 | CF250B255TAP-316 | 316 S.S | 336.5 | 28.5 | M10*30 | 254.5 | 306.5 | |
| CF3195 | CF300B305TAP-316 | 316 S.S | 355.6 | 28.5 | M10*30 | 305.4 | 325.7 | |
| CF3196 | CF350B356TAP-316 | 316 S.S | 419.1 | 28.5 | M10*30 | 356.1 | 388.9 |
