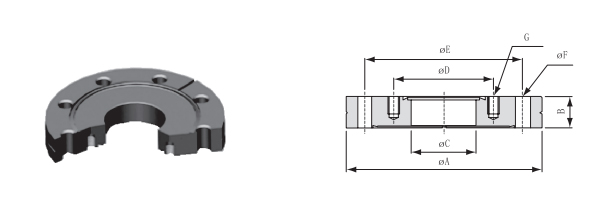

Name : CF Reducing Flange
| parts no. | Model | Material | A | B | C | D | E | F*No | G*No | price |
|---|---|---|---|---|---|---|---|---|---|---|
| CF3197 | CF35RF16 | 304S.S. | 69.5 | 12.7 | 15.8 | 26.9 | 58.7 | 6.7*6 | M4*6 | $65.50 |
| CF3198 | CF63RF16 | 304S.S. | 113.6 | 18 | 15.8 | 26.9 | 92.1 | 8.4*8 | M4*6 | $98.50 |
| CF3199 | CF63RF35 | 304S.S. | 113.6 | 18 | 38.1 | 58.7 | 92.1 | 8.4*8 | M6*6 | $98.50 |
| CF3200 | CF100RF35 | 304S.S. | 151.6 | 20 | 38.1 | 58.7 | 130.3 | 8.4*16 | M6*6 | $126.20 |
| CF3201 | CF100RF63 | 304S.S. | 151.6 | 20 | 63.5 | 92.1 | 130.3 | 8.4*16 | M8*8 | $150.00 |
| CF3202 | CF150RF35 | 304S.S. | 202.5 | 22 | 38.1 | 58.7 | 181 | 8.4*20 | M6*6 | $170.90 |
| CF3203 | CF150RF63 | 304S.S. | 202.5 | 22 | 63.5 | 92.1 | 181 | 8.4*20 | M8*8 | $170.90 |
| CF3204 | CF150RF100 | 304S.S. | 202.5 | 22 | 101.6 | 130.3 | 181 | 8.4*20 | M8*16 | |
| CF3205 | CF200RF35 | 304S.S. | 253.2 | 24.7 | 38.1 | 58.7 | 231.8 | 8.4*24 | M6*6 | |
| CF3206 | CF200RF63 | 304S.S. | 253.2 | 24.7 | 63.5 | 92.1 | 231.8 | 8.4*24 | M8*8 | |
| CF3207 | CF200RF100 | 304S.S. | 253.2 | 24.7 | 101.6 | 130.3 | 231.8 | 8.4*24 | M8*16 | |
| CF3208 | CF200RF150 | 304S.S. | 253.2 | 24.7 | 152.4 | 181 | 231.8 | 8.4*24 | M8*20 | |
| CF3209 | CF250RF35 | 304S.S. | 336.5 | 28.5 | 38.1 | 58.7 | 306.5 | 10.3*30 | M6*6 | |
| CF3210 | CF250RF63 | 304S.S. | 336.5 | 28.5 | 63.5 | 92.1 | 306.5 | 10.3*30 | M8*8 | |
| CF3211 | CF250RF100 | 304S.S. | 336.5 | 28.5 | 101.6 | 130.3 | 306.5 | 10.3*30 | M8*16 | |
| CF3212 | CF250RF150 | 304S.S. | 336.5 | 28.5 | 152.4 | 181 | 306.5 | 10.3*30 | M8*20 | |
| CF3213 | CF250RF200 | 304S.S. | 336.5 | 28.5 | 203.2 | 231.8 | 306.5 | 10.3*30 | M8*24 |
