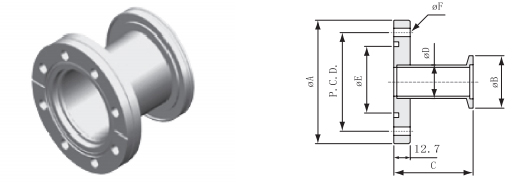

Name : ANSI-KF tubulated adaptor with O"ring Groove
| parts no. | Model | Material | Norminal | A | B | C | D | E | F*No | P.C.D | price |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZH5007 | ASA40GKA40 | 304 S.S. | 1 | 108 | 55 | 42 | 38.1 | 47.5 | 15.8*4 | 79.4 | |
| ZH5008 | ASA40GKA50 | 304 S.S. | 1 | 108 | 75 | 42 | 50.8 | 47.5 | 15.8*4 | 79.4 | |
| ZH5009 | ASA50GKS40 | 304 S.S. | 1 1/2 | 127 | 55 | 42 | 38.1 | 63.5 | 15.8*4 | 98.4 | |
| ZH5010 | ASA50GKSA50 | 304 S.S. | 1 1/2 | 127 | 75 | 42 | 50.8 | 63.5 | 15.8*4 | 98.4 | |
| ZH5011 | ASA70GKA40 | 304 S.S. | 3 | 190.5 | 55 | 42 | 38.1 | 117.5 | 19*4 | 152.4 | |
| ZH5012 | ASA70GKA50 | 304 S.S. | 3 | 190.5 | 75 | 42 | 50.8 | 117.5 | 19*4 | 152.4 |
