Name : Manually Operated with bellows : ISO flange

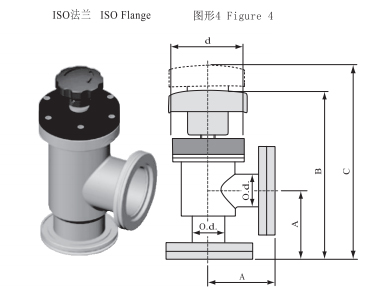

ANGLE VACUUM VALVE Manually Operated with bellows Port connections : ISO flange
parts no.
Model
O.d
A
B
C
D
price
FM6014
AVB-ISO63-M
2.50
3.26
8.63
10.30
3.92
FM6015
AVB-ISO80-M
3.00
3.51
8.95
10.83
4.49
Note:All dimensions shown on this page are in inch Specification Polished 304 stainless steel body 3/4-2 inch(19.05-50.8mm) port Ods Bakeable to 150︒C Viton seal bonnet 10⁻⁹ torr vacuum rating KF,ISO and CF flange
