ANGLE VACUUM VALVE
Manually operated without bellows

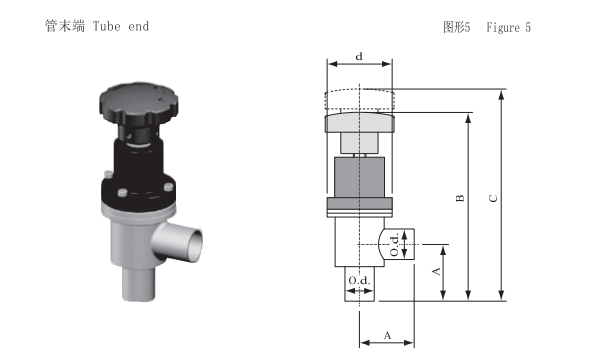

Port Connection: Tube end
|
| parts no. | Model | O.d | A | B | C | D | price |
| FM6025 | AV-TE16-M | 0.75 | 2.00 | 6.45 | 7.07 | 2.24 |
|
| FM6026 | AV-TE25-M | 1.00 | 1.88 | 6.20 | 6.82 | 2.24 |
|
| FM6027 | AV-TE40-M | 1.50 | 2.25 | 7.35 | 8.63 | 2.98 |
|
| FM6028 | AV-TE50-M | 2.00 | 3.25 | 9.65 | 11.24 | 3.48 |
|
Specification
Polished 304 stainless steel body
3/4-2 inch(19.05-50.8mm) port Ods
Bakeable to 150︒C
Viton seal bonnet
10⁻⁹ torr vacuum rating KF flange
