ANGLE VACUUM VALVE
Manually operated without bellows

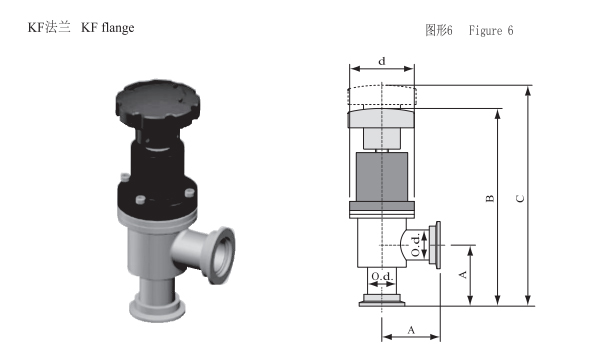

Port Connection: KF flange |
| parts no. | Model | O.d | A | B | C | D | price |
| FM6029 | AV-KF16-M | 0.75 | 2.15 | 6.59 | 7.22 | 2.24 |
|
| FM6030 | AV-KF25-M | 1.00 | 2.03 | 6.35 | 6.97 | 2.24 |
|
| FM6031 | AV-KF40-M | 1.50 | 2.40 | 7.50 | 8.78 | 2.98 |
|
| FM6032 | AV-KF50-M | 2.00 | 3.40 | 9.80 | 11.39 | 3.48 |
|
Specification
Polished 304 stainless steel body
3/4-2 inch(19.05-50.8mm) port Ods
Bakeable to 150︒C
Viton seal bonnet
10⁻⁹ torr vacuum rating KF flange
