ANGLE VACUUM VALVE
Manually operated copper seal bonnet with bellows

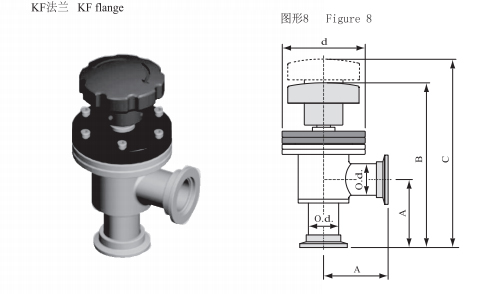

Port Connection: KF flange

parts no.	Model	O.d	A	B	C	d	price
FM6042	AVB-CU-KF16-M	0.75	2.15	5.24	6.01	2.75
FM6043	AVB-CU-KF25-M	1.00	2.03	5.11	5.89	2.75
FM6044	AVB-CU-KF40-M	1.50	2.40	6.62	7.85	3.37
FM6045	AVB-CU-KF50-M	2.00	3.40	8.14	9.91	4.47

Note:All dimensions shown on this page are in inch
Specification
Polished 304 stainless steel body
3/4-3 inch port Ods
Bakeable to 150︒C
Metal seal bonnet
10⁻⁹ torr vacuum rating KF flange
