ANGLE VACUUM VALVE
Manually operated copper seal bonnet with bellows
Port Connection: CF Rotatable flange

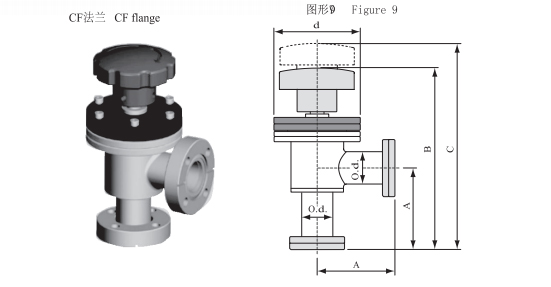

parts no.	Model	O.d	A	B	C	d	price
FM6046	AVB-CU-CR16-M	0.75	2.5	5.58	6.36	2.75
FM6047	AVB-CU-CR35-M	1.5	2.45	6.68	7.9	3.37
FM6048	AVB-CU-CR63-M	2.5	3.38	8.72	11.38	4.47

Note:All dimensions shown on this page are in inch

Specification
Polished 304 stainless steel body
3/4-3 inch port Ods
Bakeable to 150︒C
200︒C intermittently for CF flange port Ods
Metal seal bonnet
approximate 10⁻¹︒ torr vacuum rating CF flange
