ANGLE VACUUM VALVE
Pneumatically Actuated

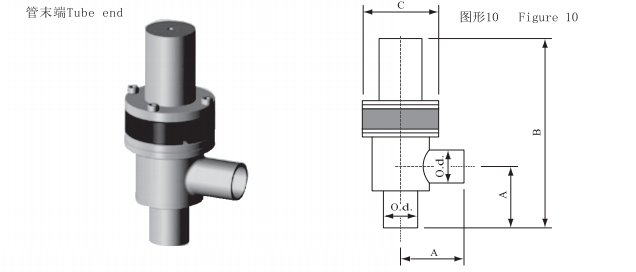

Port Connection: Tube End

parts no.	Model	O.d	A	B	C	price
FM6049	AVB-TE16-P	0.75	2.00	6.03	2.24
FM6050	AVB-TE25-P	1.00	1.88	5.77	2.24
FM6051	AVB-TE40-P	1.50	2.25	7.69	2.98
FM6052	AVB-TE50-P	2.00	3.25	10.18	3.48

Note:All dimensions shown on this page are in inch
Specification
Polished 304 stainless steel body
3/4-2 inch port Ods
4-6.5 kg/cm² operating air pressure
Bakeable to 150︒C
Viton seal bonnet
10⁻⁹ torr vacuum rating KF and CF flange
