 Name : 　Pneumatically Actuated with bellows,air to open,air to close : Tube end

ANGLE VACUUM VALVE
Pneumatically Actuated

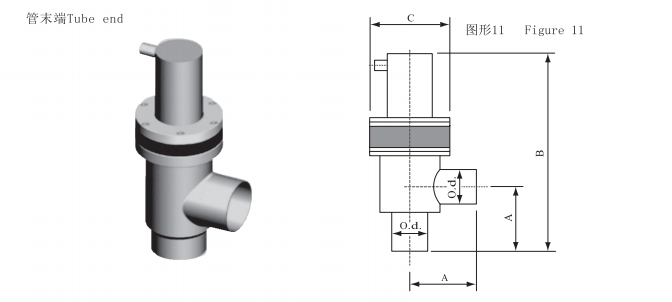

Port Connection: Tube End


parts no.ModelO.dABCprice
FM6059AVB-TE16-P20.752.006.412.24
FM6060AVB-TE25-P21.001.886.172.24
FM6061AVB-TE40-P21.502.257.182.98
FM6062AVB-TE50-P22.003.259.443.48
FM6063AVB-TE63-P22.503.0010.443.92
FM6064AVB-TE80-P23.003.2510.694.49
FM6065AVB-TE100-P24.004.2113.605.97
FM6066AVB-TE160-P26.006.0017.569.45


Note All dimensions shown on this page are in inch
Specification
Polished 304 stainless steel body
3/4-8 inch port Ods
4-6.5 kg/cm² operating air pressure
Bakeable to 150︒C
Viton seal bonnet
10⁻⁹ torr vacuum rating KF and ISO flange
